Product overview:

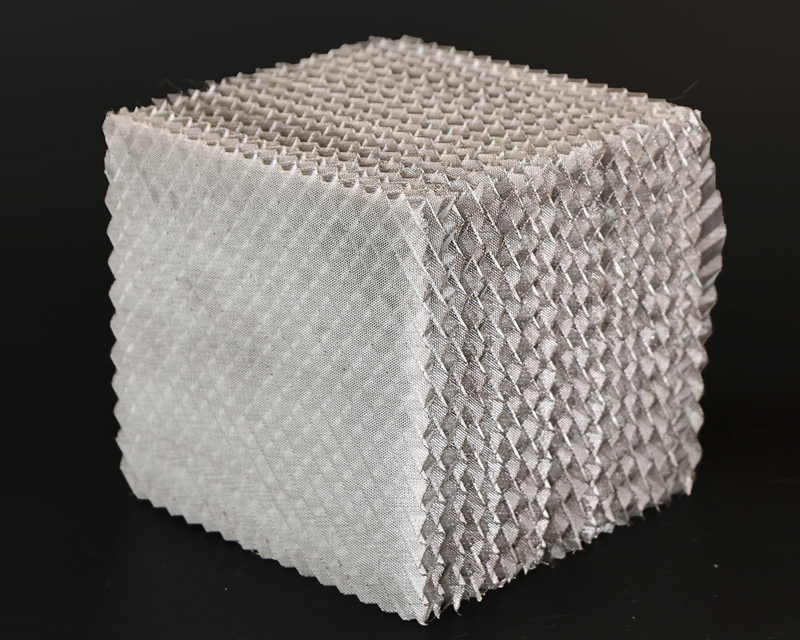

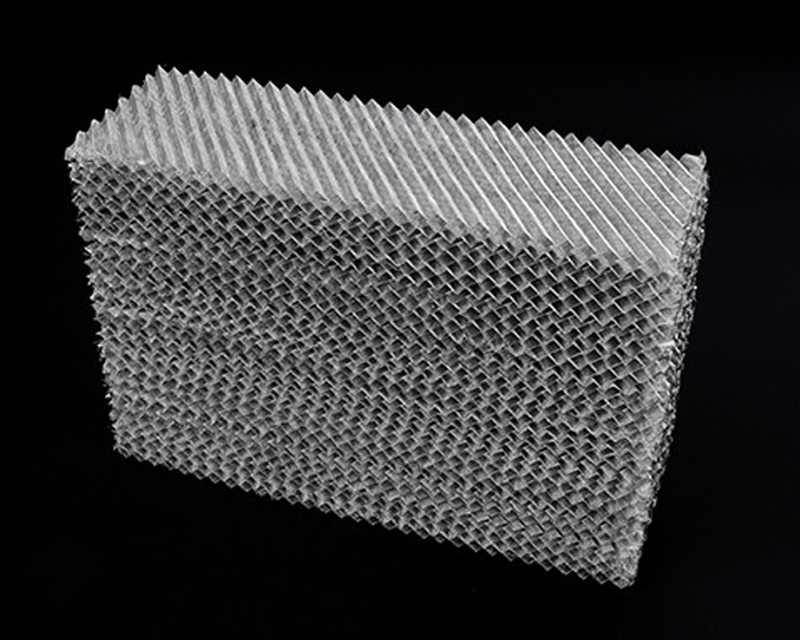

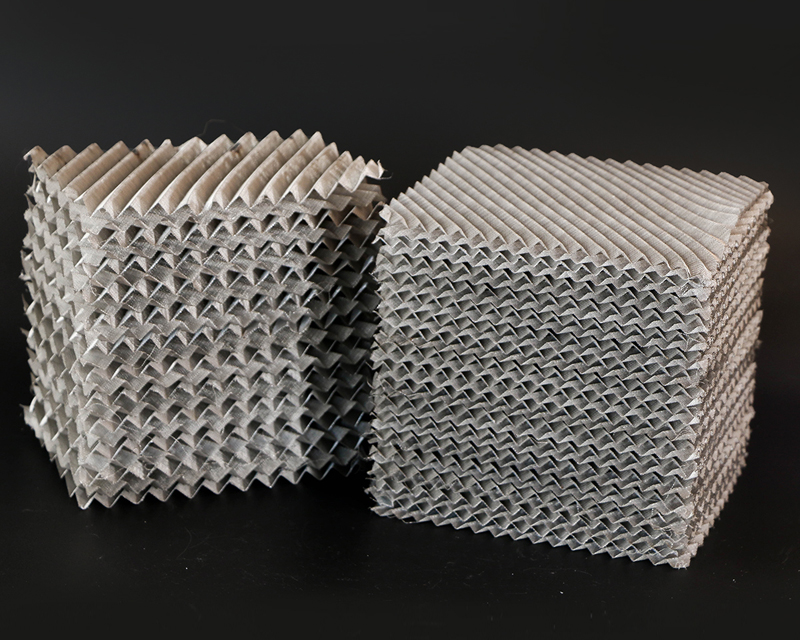

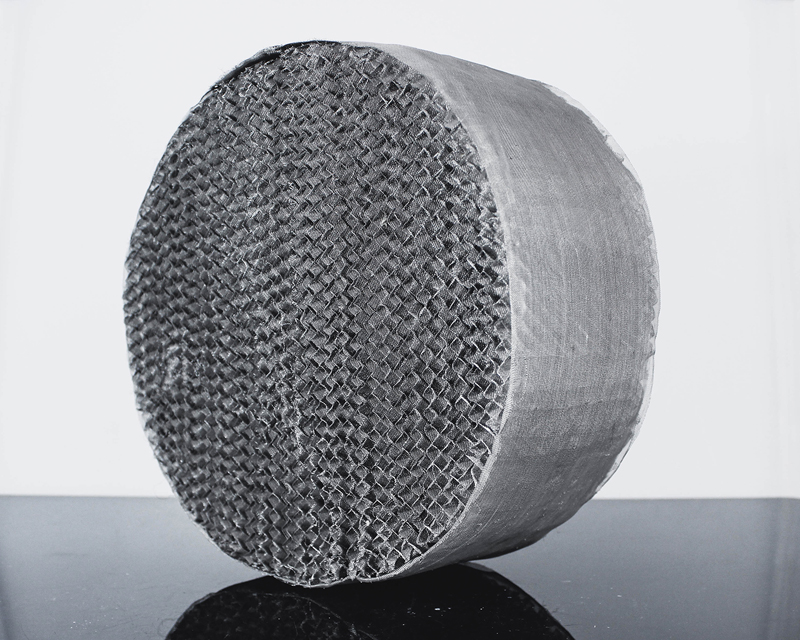

The metal wire mesh corrugated packing is assembled by stainless steel wire mesh corrugated sheets. The packing forms a uniform geometric pattern arrangement in the tower, which stipulates the vapor-liquid flow path, and improves the channel flow and wall flow phenomenon. The corrugation direction of the mesh sheet and the tower axis The angle of inclination is generally 30 and 45°. Due to the capillary function of the screen, the surface area has more effective wetting properties, has a low pressure drop and a small liquid holding capacity, so it has a high separation efficiency. It is especially suitable for difficult-to-separate and heat-sensitive materials. It is widely used in petrochemical industry (such as the catalytic cracking stripping section of oil refinery), fertilizer, natural gas, biochemical industry, environmental engineering and other fields. The diameter of the tower equipment is up to 6 meters, and the separation performance is higher than that of the metal orifice corrugated packing.
Wire mesh packing is suitable for a variety of precise separation, fine separation, high-purity separation, cryogenic separation, air separation and other occasions. Each meter of packing layer can provide 3~12 engineering theoretical plates, which greatly reduces the tower height. For systems with large liquid-to-gas ratios, highly corrosive systems, dirty clogging systems, high surface tension and high viscosity systems, etc., use caution.

Product Features:
●Simple structure, light weight, large porosity, small pressure drop, large contact surface area, high defoaming efficiency,
●Non-toxic, tasteless, low density, strength, rigidity, hardness and heat resistance are better than low-pressure polyethylene, can be used at about 100 degrees.
●It has good electrical properties and high-frequency insulation without being affected by humidity, but it becomes brittle, non-wearing, and easy to age at low temperatures.
